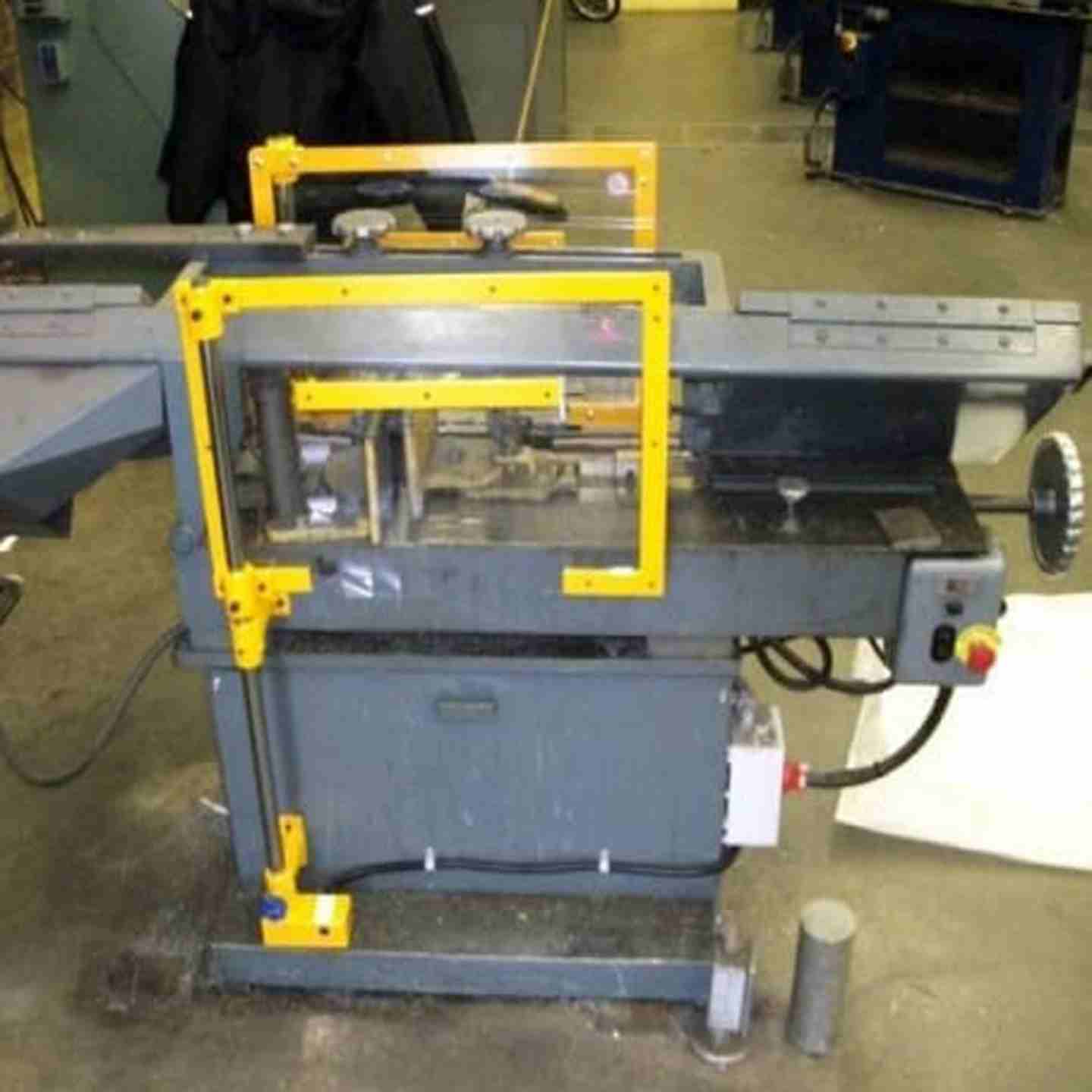

The PS-1 Horizontal Band Saw Guard encloses the cutting zone on shop-size horizontal band saws and power hacksaws with two hinged, electrically interlocked shields. Opening either shield breaks the interlock circuit and disables the machine, preventing blade contact during loading, adjustment, and chip clearing. Clear polycarbonate panels keep the cut line visible, while vinyl strip curtains let stock of varying sizes pass through without defeating the enclosure.

Key Features

• Electrically interlocked safety switches on both front and back shields - opening either shield disables the machine
• Two-shield coverage (front and back included) encloses the blade from both operator and back-side approach
• Clear polycarbonate panels for full visibility of the blade and cut line
• Cut PVC strip curtains allow stock pass-through across varying material sizes without removing the guard
• Shields open outward and adjust vertically to accommodate different stock heights and machine geometries
• Standard screen size 23.6" × 15.75"; custom screen sizes available on request
• 44" post height
• Shields the operator from coolant spray, chips, and blade-break projections
• Bolt-on mounting; 39 lb assembled weight
• Available in clear or safety yellow
• Reduces exposure to shear points, cut hazards, and amputation risk at the blade
