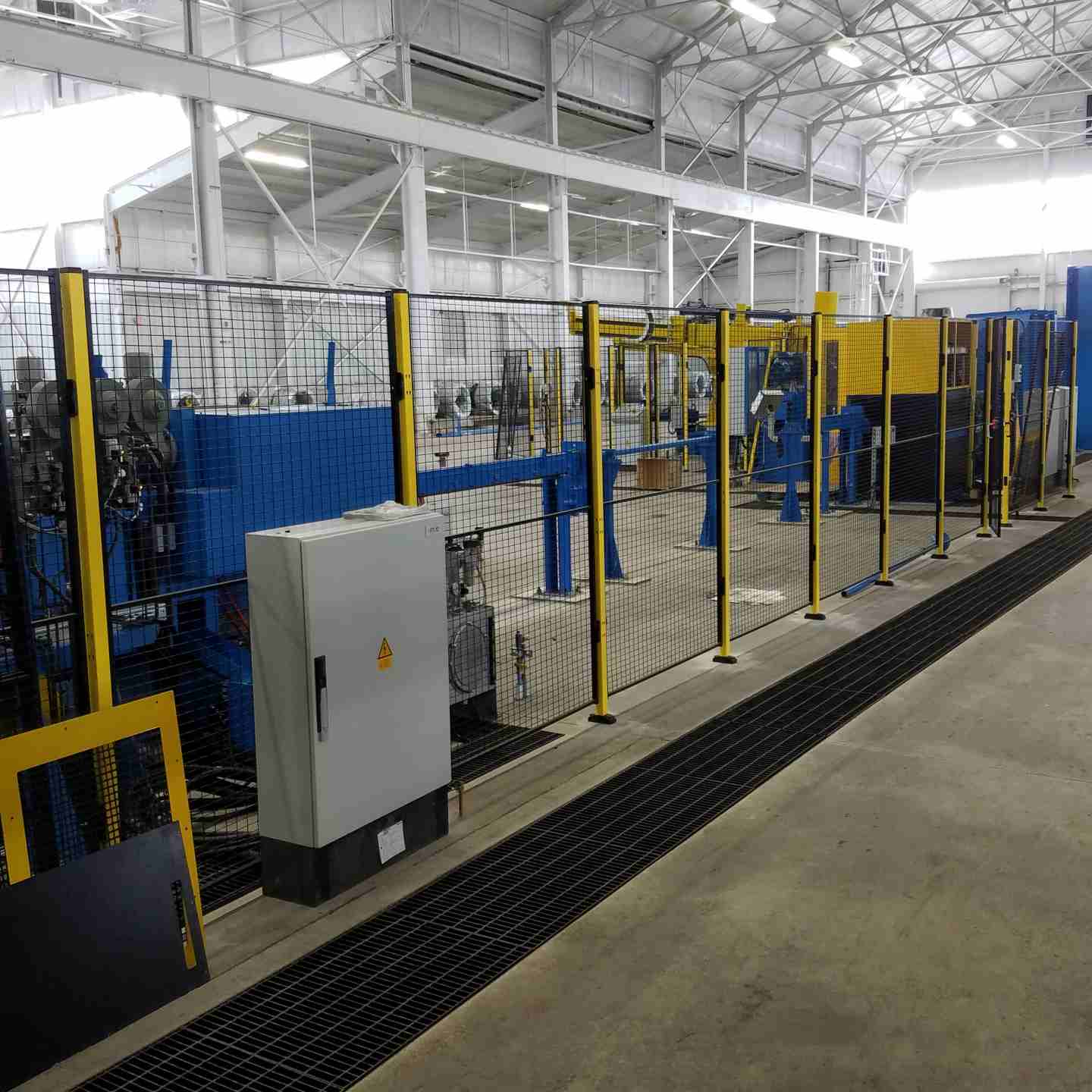

Perimeter Safety Guarding

Modular perimeter guarding for robotic cells, CNC areas, and automated production environments.

Contact for Pricing

Perimeter safety guarding establishes the fixed boundary around robotic cells, automated lines, conveyors, and high-hazard machinery, with all access controlled through interlocked gates. Aluminum extrusion or steel-tube framing carries wire mesh or polycarbonate infill that keeps the cell visible while holding the required safety distance. Panel height, mesh aperture, and gate placement are determined by the cell layout and the safety distance calculation, not by stock panel sizes.

Key Features

  • Built to OSHA, ANSI B11.19, and ISO 13857 safety distance requirements
  • Panel height and mesh aperture specified against reach-through and reach-over distance calculations
  • Mesh or polycarbonate infill that maintains visibility into the cell
  • Interlocked access gates, with guard locking where machine stopping time requires it
  • Integrates light curtains, gate interlocks, badge access, and E-stop circuits
  • T-slot aluminum, steel-tube, or hybrid framing selected by load and environment
  • Floor anchors, leveling feet, casters, and optional roof panels for overhead hazards
  • Custom heights, runs, and gate placement set by the cell layout and operator traffic
  • Pre-fabricated sections that install in sequence with minimal field cutting
  • Provisions for cable routing, signage, and status light mounting
  • Expandable and reconfigurable as the cell layout changes
  • Installed on site with interlock wiring documentation supplied at turnover

Request Info or Order

Contact for Pricing
SALE

Perimeter Safety Guarding

Modular perimeter guarding for robotic cells, CNC areas, and automated production environments.

Contact for Pricing

Perimeter safety guarding establishes the fixed boundary around robotic cells, automated lines, conveyors, and high-hazard machinery, with all access controlled through interlocked gates. Aluminum extrusion or steel-tube framing carries wire mesh or polycarbonate infill that keeps the cell visible while holding the required safety distance. Panel height, mesh aperture, and gate placement are determined by the cell layout and the safety distance calculation, not by stock panel sizes.

Key Features

  • Built to OSHA, ANSI B11.19, and ISO 13857 safety distance requirements
  • Panel height and mesh aperture specified against reach-through and reach-over distance calculations
  • Mesh or polycarbonate infill that maintains visibility into the cell
  • Interlocked access gates, with guard locking where machine stopping time requires it
  • Integrates light curtains, gate interlocks, badge access, and E-stop circuits
  • T-slot aluminum, steel-tube, or hybrid framing selected by load and environment
  • Floor anchors, leveling feet, casters, and optional roof panels for overhead hazards
  • Custom heights, runs, and gate placement set by the cell layout and operator traffic
  • Pre-fabricated sections that install in sequence with minimal field cutting
  • Provisions for cable routing, signage, and status light mounting
  • Expandable and reconfigurable as the cell layout changes
  • Installed on site with interlock wiring documentation supplied at turnover

Request Info or Order

Contact for Pricing
Product Details
expand section

Assembly

  • Optional interlock wiring diagram
  • Structural frames, doors, and hardware
  • Mesh or polycarbonate infill panels

Common Uses

  • Robotic cells, palletizers, CNC machining lines, weld cells, and AGV pathways
  • Automated production lines and conveyor systems requiring controlled access
  • Enclosing existing equipment to establish a compliant safeguarded boundary
