Overview: When Machine Safety Meets Explosion Risk
In aerosol can manufacturing, safety is not just about guarding moving parts…it is about preventing catastrophic events.
A leading consumer goods manufacturer producing pressurized aerosol cans approached PowerSafe Automation with a critical challenge:
How do you protect operators and meet compliance requirements in an environment where flammable propellants, vapor accumulation, and ignition sources coexist?
Traditional guarding solutions were not enough. The environment required intrinsically safe design principles, combined with robust mechanical guarding and functional safety integration.
The Challenge: High-Speed Production + Hazardous Atmosphere
The facility operated multiple high-speed aerosol filling and crimping lines handling flammable propellants such as butane and propane. Key risks included:
- Explosion hazards from vapor accumulation.
- Ignition risks from electrical components and static discharge.
- Operator exposure to moving mechanical systems.
- Maintenance access points compromising safety integrity.
- Compliance pressure from OSHA, NFPA, and ANSI standards.
Critical Pain Points
- Legacy guarding systems were not rated for hazardous locations.
- Electrical safety components were not intrinsically safe.
- Frequent access points created risk of bypassing safety systems.
- Lack of a prioritized safety roadmap for capital planning.
The Solution: Intrinsically Safe + Engineering-Led Guarding
PowerSafe Automation deployed a turnkey safety solution built around intrinsic safety principles and risk-based engineering.
1. Risk Reduction Prioritization Program (RRPP)
Before design began, the team conducted a structured RRPP assessment to:
- Identify and rank hazards across all aerosol lines.
- Assign priority levels (Red / Yellow / Green)
- Create a 12-month CapEx roadmap.
- Align safety investments with operational impact.
This ensured the highest-risk explosion zones were addressed first.
2. Intrinsically Safe Design Integration
Unlike conventional guarding, this project required energy-limited systems to prevent ignition.
Key Intrinsic Safety Elements:
- Intrinsically safe barriers and relays
- Low energy signaling circuits.
- Proper grounding and bonding systems
- Static dissipation through material selection
- Hazardous location-rated components
All systems were designed to meet applicable requirements for Class I, Division 1 / Zone-rated environments.

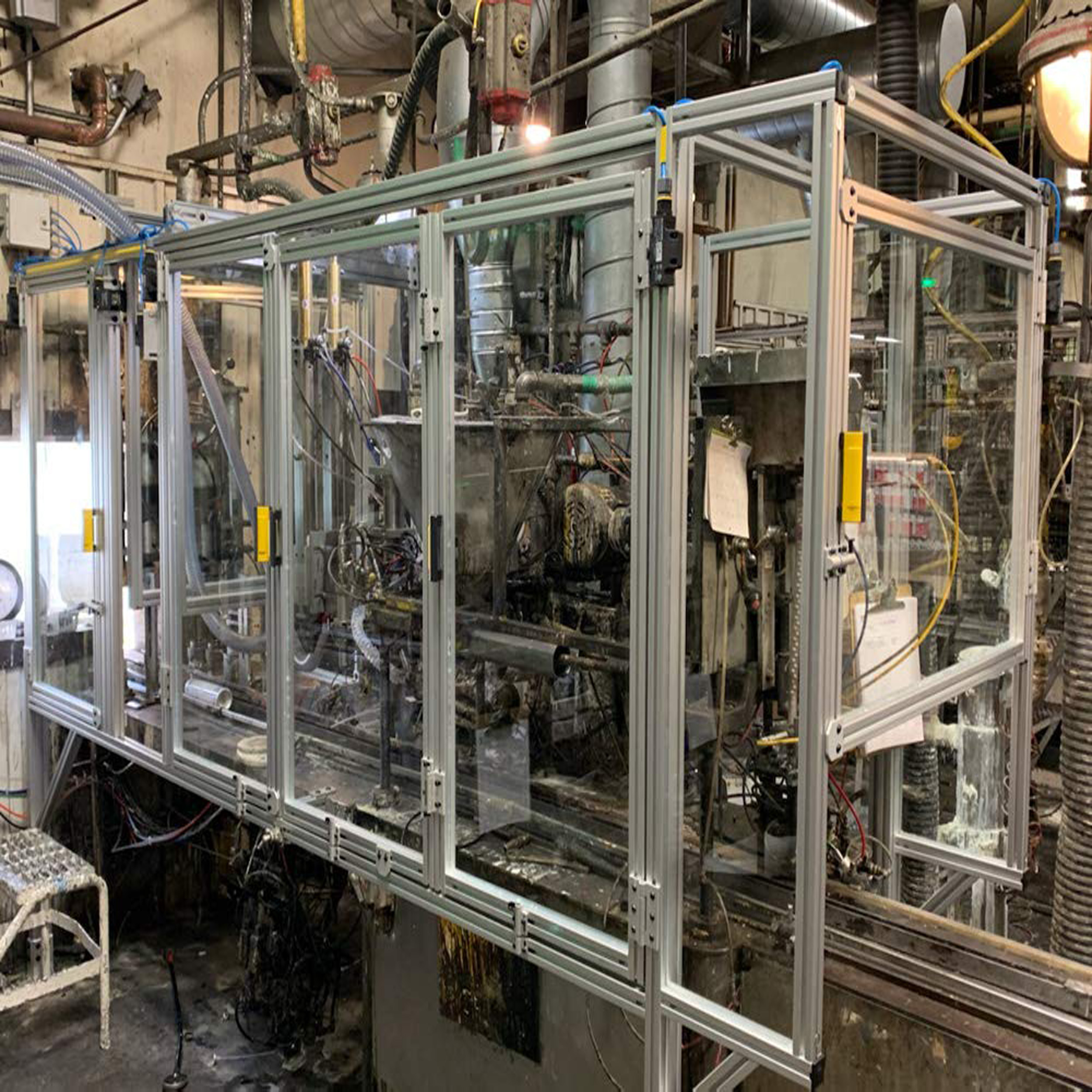

3. Custom Engineered Guarding Systems
The mechanical guarding system was designed to balance:
- Maximum protection
- Operator usability
- Maintenance accessibility
Features Included:
- Heavy-duty framed guarding with impact-resistant panels
- Sealed enclosures to limit vapor ingress.
- Interlocked access doors with safety-rated switches
- Vertical lift doors for ergonomic access in tight footprints
- Modular designs for future scalability
4. Functional Safety Integration
To complement intrinsic safety, PowerSafe Automation implemented functional safety controls aligned with ANSI and ISO standards.
System Components:
- Safety PLC integration for monitoring and diagnostics
- Redundant safety circuits designed to PLd / PLe performance levels.
- Safety interlocks preventing access during operation.
- Emergency stop systems positioned for rapid response.
- Controlled stop-time validation where applicable
5. Turnkey Execution: From Design to Installation
This project was delivered as a fully turnkey solution, including:
- On-site assessments and hazard analysis
- Mechanical and electrical design engineering
- Fabrication and assembly of guarding systems
- Nationwide installation by trained crews
- Validation and documentation packages
The Results: Safer Operations Without Sacrificing Throughput
The outcome was a measurable improvement in both safety performance and operational efficiency.
Key Results
✔ Reduced explosion risk through intrinsically safe design ✔ Improved operator safety at all access points ✔ Achieved compliance with OSHA, NFPA, and ANSI standards ✔ Minimized downtime with ergonomic, maintenance-friendly access ✔ Established a long-term safety roadmap via RRPP
Before vs. After
| Category | Before | After |
| Explosion Risk | High due to ignition sources | Mitigated with intrinsic safety |
| Guarding | Incomplete / non-rated | Fully engineered, hazard-rated |
| Compliance | Gaps in standards alignment | Aligned with ANSI, OSHA, NFPA |
| Operator Safety | High exposure | Controlled, interlocked access |
| Maintenance | Unsafe access practices | Ergonomic, controlled entry |
Why Intrinsic Safety Matters in Aerosol Manufacturing
In environments with flammable gases or vapors, traditional guarding alone cannot eliminate risk.
Intrinsic safety ensures that:
- Electrical and thermal energy levels are too low to ignite.
- Systems remain safe even under fault conditions.
- Hazardous environments are controlled at the source.
This makes it a critical strategy for industries such as:
- Aerosol and pressurized packaging
- Chemical processing
- Oil & gas
- Battery manufacturing
PowerSafe Automation’s Approach: Engineering Your Safety
What sets this project apart is not just the solution, but the methodology.
PowerSafe Automation combines:
- Mechanical engineering (guarding design)
- Controls engineering (functional safety)
- Applications engineering (real-world usability)
- Risk-based prioritization (RRPP framework)
This ensures safety solutions are not just compliant, but practical, scalable, and aligned with production goals.
Ready to Reduce Risk in Hazardous Environments?
If your facility operates in a hazardous or explosive environment, the question is not whether you need guarding…it is whether your current system is truly safe.
Start With a Risk-Based Approach:
- Identify your highest risk machines.
- Evaluate intrinsic safety requirements.
Build a prioritized roadmap for implementation.
