How to Engineer Safe, Compliant, and Scalable Guarding for High-Speed Automated Lines
The rapid growth of electric vehicle (EV) manufacturing has accelerated innovation across production, assembly, and automated testing lines. With this growth comes a greater demand for worker safety, operational uptime, and clean-room ready containment methods. Among the most critical components supporting EV battery cell, module, and pack assembly are tunnel guarding systems—robust and modular enclosures that protect personnel and equipment throughout high-speed conveying, handling, and test processes.
Unlike traditional machine guarding, tunnel guards in EV battery facilities must seamlessly integrate with highly specialized production systems, including battery formation, conveyance, electrolyte filling, laser welding, module assembly, pack assembly, thermal testing, and automated end-of-line validation. These environments present unique safety challenges: hazardous energy, electrical risk, thermal events, flammable chemistries, particulate containment, and strict process flow.
This article explores the engineering considerations, safety standards, integration requirements, and structural principles for designing and installing turnkey tunnel guards using t-slotted aluminum framing and clear polycarbonate protection panels.
Why Tunnel Guards Are Essential in EV Battery Manufacturing
EV battery lines involve rapid motion, precision robotics, sensitive chemistries, and large volumes of active materials. Tunnel guards support:
- Worker protection from mechanical motion
- Containment of dust and debris
- Isolation of potentially hazardous materials
- Thermal event release containment and channeling
- Compliance with OSHA, ANSI, ISO, CSA, and RIA safety standards
- Visual inspection without interrupting flow
- Scalable production line changes
- Built-in access via service doors, panels, and hardware
- Controlled access via safety interlocks
Because battery module and pack assembly often operate in high-energy environments, safety systems must not only mitigate mechanical hazards but also address electrical and thermal risk.
Tunnel guarding provides continuous barrier protection across production systems—maintaining throughput while keeping personnel safe.

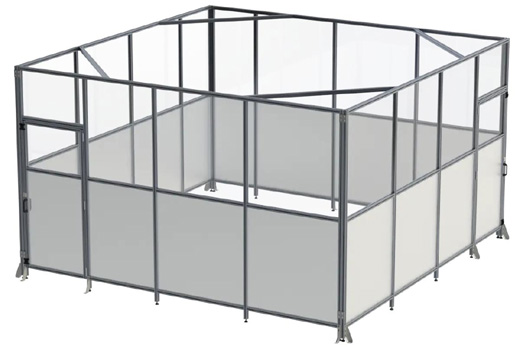

Why T-Slotted Extrusion + Clear Polycarbonate Is the Ideal Solution
T-slotted aluminum framing paired with polycarbonate panels is the most flexible and production-ready configuration because it offers:
- High structural strength + low weight
- Cleanroom compatibility
- High-impact resistance
- UL-recognized material options
- Integrated mounting channels for hardware
- Excellent visibility for monitoring
- Easy reconfiguration and field modification
- Chemical resistance
- Fast installation and replacement
Polycarbonate also resists cracking under stress, making it safer than acrylic in thermal or mechanical high-stress environments.
This flexibility is invaluable because battery production lines inevitably evolve. T-slot systems allow stations to be reconfigured without scrapping complete assets.
Engineering Considerations When Designing Tunnel Guards for EV Battery Facilities
Proper tunnel guard design ensures reliable containment, serviceability, and compliance. The following sections detail the engineering topics most critical for success.
1. Integration With Pre-Configured Battery Production & Test Stations
EV battery equipment is often supplied by global integrators with tightly controlled interfaces. Tunnel guarding must integrate without interfering with:
- Conveyor geometry
- Formation racks
- Laser weld cells
- End-of-line battery testing equipment
- Pack cooling stations
- Battery charge/discharge systems
- Leak/pressure test chambers
Key factors:
- Maintain working clearances
- Do not obstruct robot work envelopes
- Accommodate maintenance access points
- Provide visual transparency
- Preserve airflow for thermal processes
Proper tunnel guard design begins with a full system survey, CAD overlay alignment, and integration with original equipment manufacturer (OEM) layouts.
2. Dust Gap Allowances & Environmental Containment
Lithium, graphite, and electrolyte-containing components require controlled environments. Guarding must support:
- Reduced particulate migration
- Conformance to production clean-room requirements
- Flush-mount gasketing between panels
- Overlapping extrusion interfaces
- Brush, PVC, or silicone strip gap sealing
- Proper egress paths for thermal relief
Gaps around:
- Conveyor transfers
- Robot bases
- Electrical cabinet passthroughs
…must be minimized without restricting mechanical motion.
Tunnel assessors typically target <3 mm gap tolerances in critical areas.
3. Thermal Event Escapement Areas
A battery failure or short circuit can cause:
- Rapid energy release
- Thermal runaway
- Pressure and flame ejection
Tunnel guard design should include:
- Controlled venting zones
- Flame-resistant polycarbonate or aluminum panels
- Relief ports toward safe release paths
- Isolation zones near formation and test stations
- Integration with facility HVAC extraction
- Thermal insulation or coatings where required
Depending on the hazard profile, polycarbonate panel thickness may increase to ¼" (6.35 mm), ⅜" (9.53 mm), or ½" (12.7 mm).
4. Pre-Designed Access Panels for Drives, Gearboxes, & Field Maintenance
Drives, motors, and gearboxes require routine maintenance. Guarding should offer:
- Hinge or lift-off access doors
- Panel hatches near drive housings
- Gas-spring lift panels for overhead access
- Tool-less removal panels (where permissible)
- Safety interlocked doors where hazardous energy exists
- Clear panel windows for visual maintenance
Access planning early in design prevents downtime and costly rework after commissioning.
5. Integration With Disconnects & Electrical/Air Distribution Panels
Tunnel systems must accommodate energy isolation equipment including:
- Lockable disconnect switches
- VFD panels
- Power distribution cabinets
- Pneumatic FRLs or solenoid panels
- Control junction boxes
- Network enclosures
Clearances must meet NEC and NFPA requirements, including:
- Working space in front of electrical panels
- Vertical cable management channels
- Pass-through brackets with gaskets
- Quick-disconnect air couplings
- Lockout/tagout visibility
Tunnel guards must not impede emergency egress or LOTO devices.
6. Door Hardware Standards & Safety Controls Integration
Tunnel doors may include:
- Hinged access doors
- Sliding doors (vertical or horizontal)
- Lift-up panels
- Swing-out service gates
Hardware selection must be:
- Heavy-duty
- Rated for industrial use
- Compatible with interlock switches
- Corrosion-resistant
Common hardware standards:
- Ball bearing hinges
- Spring-loaded latches
- Padlock hasps
- Mechanical or guard-locking safety switches
- Pilz, Fortress, Euchner, or Keyence interlocks
Fail-safe locking systems and performance level compliance (ISO 13849-1) may be required for hazardous cells.
7. Panel Sealing Requirements
Panel interfaces play a critical role in particulate control and environmental security. Standard sealing methods:
- Silicone edge seals
- EPDM gasket strips
- Flush-mount panel retainers
- Brush seals around conveyors
- Overlapping extrusion-to-extrusion joints
Sealing selection considers:
- Vibration
- Temperature
- Chemical exposure
- Cleanability
- Airflow requirement
High-purity clean-room processes may require FDA-approved seals.
8. Floor Mounting & Structural Stability
Mounting strategy depends on:
- Weight of structure
- Seismic requirements
- Equipment interface
- Modular reconfiguration goals
Common methods:
- Adjustable floor leveling feet
- Direct anchor bolt mounting
- Hybrid cast-plate + leveling system
- Integrated base plates for conveyor load-path stability
Structural integrity is validated via:
- Deflection calculations
- Load-path evaluation
- Anchoring force studies
For seismic risk zones, additional lateral bracing may be required.
9. Cosmetic & Branding Accessories
Aesthetics are increasingly important as EV plants double as high-tech showcases. Common add-ons:
- Powder-coated extrusion
- Colored panel inserts
- Printed safety striping
- Custom logo panels
- QR-coded maintenance tags
- LED illumination
- Integrated HMI mounts
- Modular labeling hardware
Functional accessories:
- Cable management
- Robot teach pendant hangers
- Tool trays
- Workflow signs
These improvements enhance worker engagement while maintaining safety function.
Compliance, Safety, & Performance Standards
Tunnel guards must meet industry requirements including:
U.S. + Global Safety Standards
- OSHA 1910.212 – Machine Guarding
- ANSI B11.19 – Guarding Methods
- ISO 13849-1 – Functional Safety PL/SIL
- ISO 14120 – Guarding Construction
- NFPA 79 – Electrical Safety
- NFPA 70 – NEC
- IEC/UL NRTL Material Ratings
- CSA Z432
Depending on risk profile, safety systems may include:
- Category-rated safety circuits
- Solenoid guard-locking devices
- Zero-speed monitoring
- Emergency stops
- Pressure relief modules
- Exhaust ventilation
- Safety PLC integration
A task-based risk assessment (TBRA) informs final design choices.
Turnkey Execution Workflow
A complete turnkey deployment eliminates integration gaps and ensures validated safety performance.
- Site / Line Evaluation
- Task-Based Risk Assessment
- 3D CAD Integration with OEM Models
- Mechanical Engineering & FEA
- Functional Safety Review
- Fabrication & Assembly
- Controls Integration & Validation
- Installation & Commissioning
- Documentation & Drawings
- Preventive Maintenance Planning
This single-source execution minimizes handoff errors and shortens plant commissioning timelines.
Advantages of Turnkey Tunnel Guarding for EV Battery Plants
- One accountable partner
- Faster concept-to-commissioning timeline
- OEM + integrator alignment
- Standardized hardware & workflows
- Improved worker safety
- Better energy isolation access
- Optimized airflow + containment
- Future-proof modularity
- Cleaner installation + maintenance
- Lower disruption to production
Turnkey supply eliminates vendor confusion, creates better documentation, and ensures risk reduction by design.
Example Applications
Common use cases include:
- Cell assembly tunnel guarding
- Module transfer tunnels
- Pack transfer conveyors
- Formation cooling enclosures
- End-of-line electrical discharge testing
- Ultrasonic/laser weld protection
- Battery charging test stations
- Thermal testing enclosures
These systems are often integrated with:
- 3D radar presence detection
- Light curtains & muting
- Safety scanners
- Access control systems
Future Trends in EV Battery Tunnel Guarding
EV manufacturing is scaling quickly and with it the need for adaptable safety systems. Current trends include:
- Wider use of 3D radar safety sensing
- Modular mezzanine-linked guarding
- Increased real-time safety monitoring
- Vision-integrated access panels
- Material improvements for thermal protection
- Embedded QR code asset management
Smart guarding will eventually integrate with plant MES systems.
Conclusion
As battery production technology matures, the demand for smarter, safer, and more modular tunnel guarding continues to grow. T-slotted extrusion paired with polycarbonate panels provides the most effective combination of strength, visibility, configurability, and clean-room suitability—making it an ideal choice for EV battery applications.
Proper engineering ensures that tunnel guards not only protect workers but also support production flow, maintenance access, containment, electrical distribution, and evolving safety standards.
Whether integrating with advanced robotics, high-speed conveyors, or thermal test chambers, turnkey tunnel guarding offers:
- Safety
- Compliance
- Modularity
- Speed to market
- Lifecycle cost optimization
The right partner ensures proper risk assessment, engineered design, installation, and safety validation—helping manufacturers accelerate production while maintaining world-class safety performance.
